Function: The sealing station brings together the filled form material, together with the foil where a combination of heat and pressure is used to seal the materials. After the sealing process is complete, the product is safely secured in the pack and can continue its journey down the line.
Toolrite Offering: By utilise intermittent motion platen sealing or continuous motion rotary sealing we can provide appropriate sealing tools for your packaging line.
Platen sealing requires an upper and lower plate that are heated and come together intermittently to apply pressure resulting in a high quality seal between the two materials. We consider factors like seal flange widths to achieve a high quality seal.

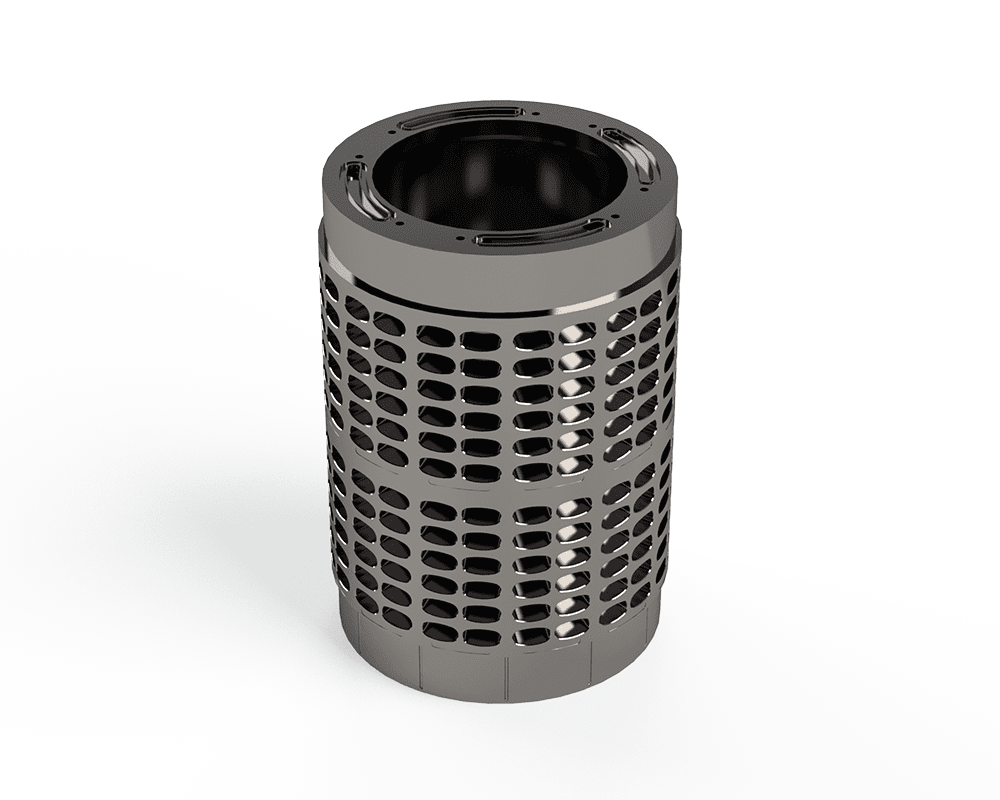

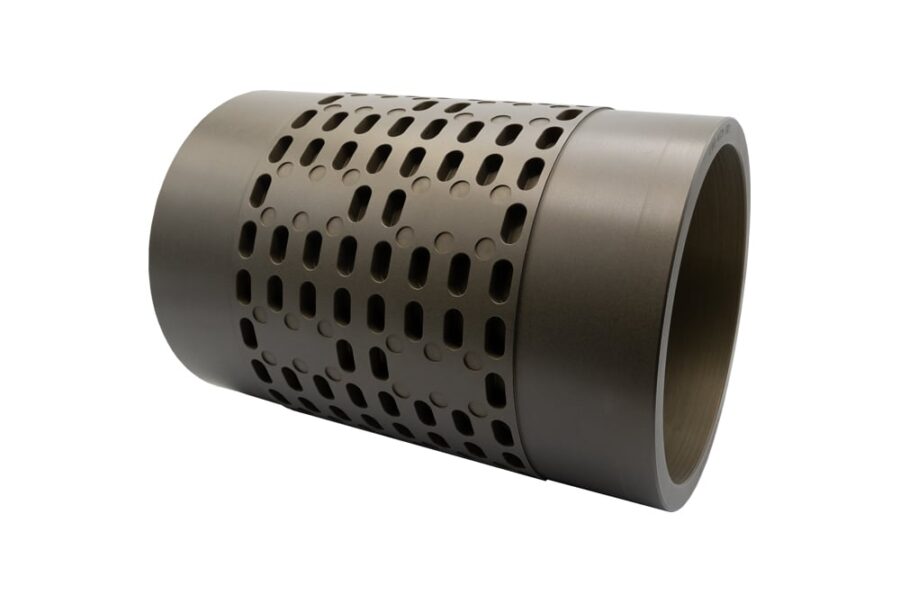

Rotary Sealing utilises cylindrical tools to apply heat and pressure in a continuous motion to create a high quality seal. There are specific occasion when rotary sealing is selected.
Function: The Reject unit is used to separate faulty packs.
Toolrite Offering: We design and manufacture these units to your specification.
Function: The Blank tool is used to cut a pack to its final dimensions.
Toolrite Offering: We design and manufacture Blank tools when there is product changeover and/or format changes.
Function: Additional stations can be setup using tools to; code, perforate or partially cut.
Toolrite Offering: We can apply unique identifier codes, perforate, and other pack features such as partial cutting or punch shapes as required.
Function: The sealing station brings together the filled form material, together with the foil where a combination of heat and pressure is used to seal the materials together. After the sealing process is complete, the product is safely secured in the pack and can continue its journey down the line.
Toolrite Offering: By utilise intermittent motion platen sealing or continuous motion rotatory sealing we can provide appropriate sealing tools for your packaging line.
Function: Solutions designed to provide optical inspection of blister packs ensuring positioning of the packaging, defects of the surface before filling, positioning of the product in the packaging and micro tears of the aluminium foil.
Toolrite Offering: Integration of an inspection system to guarantee integrity of the pack on customer packaging lines.
Function: As the name suggests, the track guides the form material keeping it located, aligned, and supported enroute to the various stations. The guide track design is based on the pack design, so if this changes, the guide track will also require modification.
Toolrite Offering: This is a standard modification due to clients requiring product changeovers and alterations to pocket formats. 90% of the time guide tracks are usually just one component in a complete tooling set.
Function: Once the product is delivered from the transfer system it needs to be manipulated into the formed pockets. This is done using a brush box and in some cases paddles too.
Toolrite Offering: Designing and manufacturing the feeding system is a critical part of any packaging line. It determines the output speed and the efficiency of a line. Toolrite will help you choose the right solution for your product so cost effective and efficient production is achieved.
Function: Here the product is introduced into the line for the first time. It is held in the hopper and passed into the vibratory chute separating dust and debris. Then into the vibrator plate of the circular vibrator, where they are transported into the feed chute and eventually into the feeding system.
Toolrite Offering: We can design and manufacture a new solution, or adapt an existing set up, for your product changeover so it is managed and then delivered to the feeding system in an automated and reliable way.

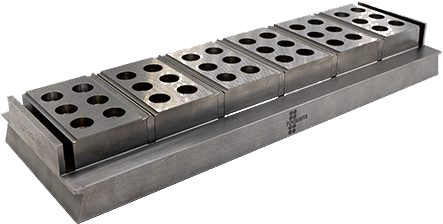

Function: A form tool transforms a flat material into a three-dimensional tray, designed to hold the product in a ‘pocket’ through the packaging line until it becomes an enclosed pack.
Toolrite Offering: Packs are designed, not only to securely protect and hold a product, but also to guarantee its formation on the packaging line, in an automated way. Consideration given to forming material, product shape, pocket dimension, repeats and pack layout. We can provide forming tools to accommodate a variety of products to meet your needs.
Function: Cutting and splicing table alterations ensure the base material is prepared and cut prior to conditioning in preparation for the form tool station.
Toolrite Offering: Review and design alteration to allow setting adjustment.
Function: Forming material is loaded as a reel/roll into the unwinder. So that the film can be used, it needs to be unrolled and prepared for the forming tool. To do this the material is under tension and pulled through the packing line.
Toolrite Offering: Design and supply collars/ sleeves so the material core fits well, ensuring reliable unwinding of the form material into the packaging line.
